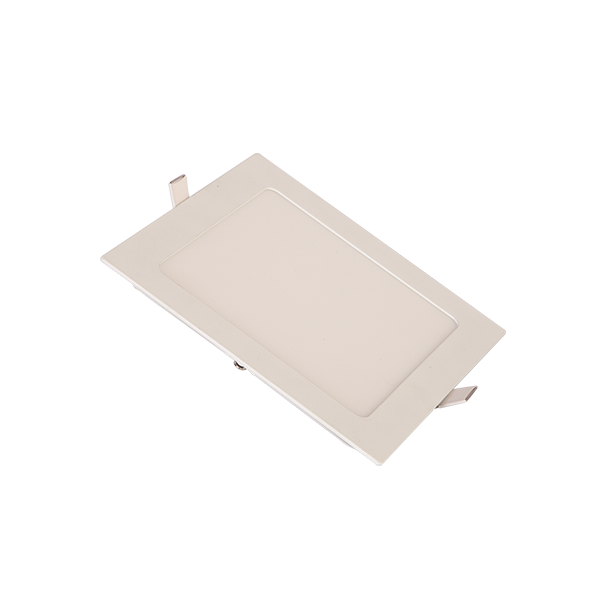

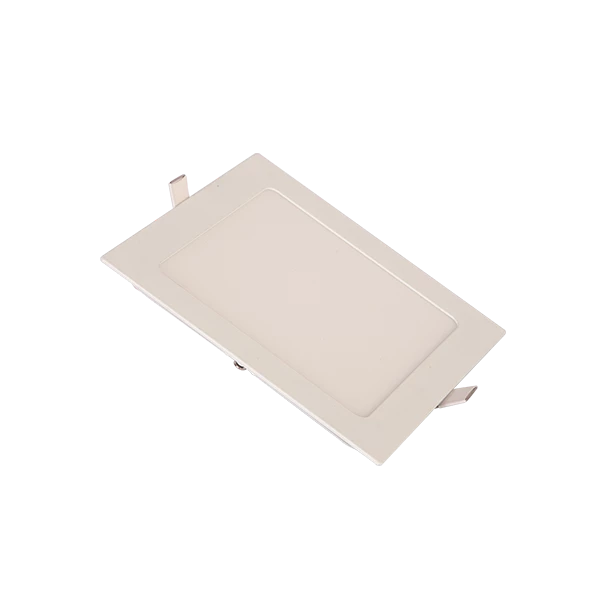

12W SMD Square Slim Ceiling Light Recess Mounting
| Spec | |
|---|---|
| Product Name | 12W SMD Square Slim Ceiling Light Recess Mounting |
| Power(W) | 12 |
| Voltage (V) | 230 |
| Frequency (Hz) | 50 |
| Current (mA) | 105 |
| Luminous Flux (lm) | 800 |
| Luminous Efficiency (Lm/W) | >66 |
| Beam Angle (deg) | 110 |
| Light Color | Daylight-Warm White |
| Color Temperature(Warm White) (k) | 2940 |
| Color Temperature(Daylight) (k) | 6400 |
| Photometric Code(Warm White) | 830/779 |
| Photometric Code(Daylight) | 865/779 |
| Color Rendering Index(CRI) | >70 |
| Displacement Factor(cos ϕ1) | ≥0.7 |
| Light Intensity | >300 |
| Lx Fy | L80 F51 |
| Operating Temperature (℃) | -20…+40 |
| Critical Temperature (℃) | tc<65 |
| LED Technology | SMD |
| Average Life (hrs) | 25000 |
| Guarantee Period | 18 months |
| Energy Grade | A |
| Energy Consumption (Wh) | 13 |
| Dimensional Specifications and Packing | |
| Height(H) | 9.5mm |
| Internal Length(IL) | 125mm |
| External Length(OL) | 165.5mm |
| Cut Size | 152mm |
| Number in carton (PCS) | 12 |
