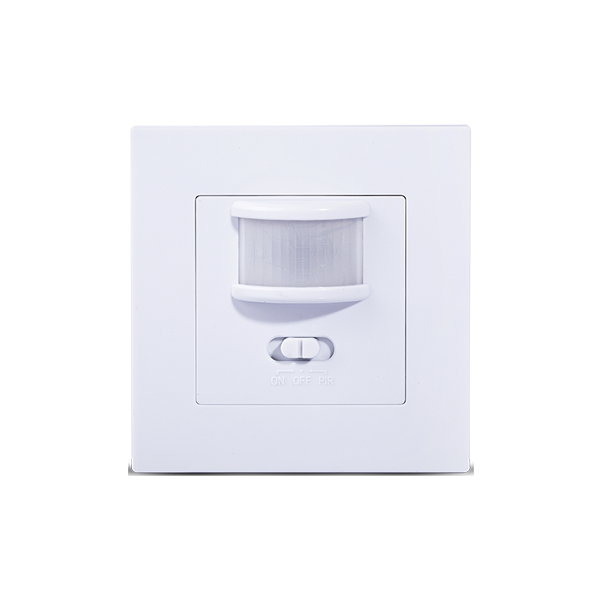

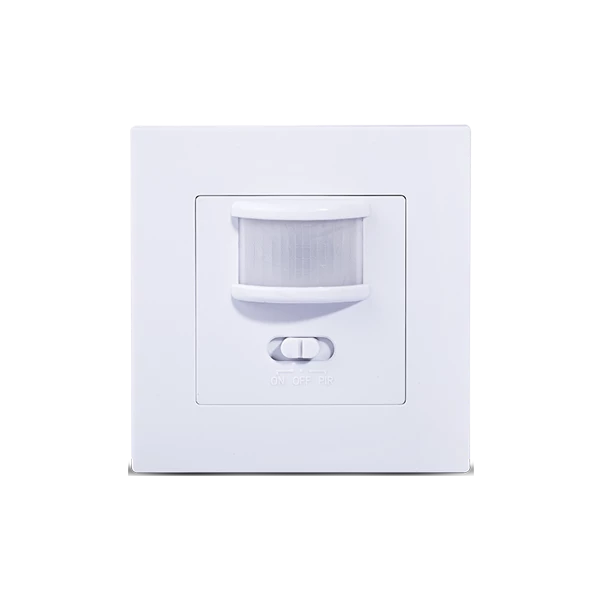

Wall Hidden PIR Motion Sensor
| Spec | |
|---|---|
| Product Name | Wall Hidden PIR Motion Sensor |
| Power (V/AC) | 220 ~ 240 |
| Frequency (Hz) | 50 |
| Number of PIR Sensors | 1 |
| Detection Angle (Degree) | 160 |
| Time Adjustment | 10(Second) ~ 7(Minute) |
| Lux Adjustment (Lux) | < 10 ~ 2000 |
| Max Detection Range (m) | 9 |
| Detectable Speed (m/s) | 0.6 ~ 1.5 |
| Ingress Protection (IP) | 20 |
| Max Resistive load (W) | CFL:100 | IL: 500 |
| Installation Place | Wall |
| Installation Height (m) | 1 - 1.8 |
| Operating Temperature (℃) | -20…+40 |
| Max Humidity | <93% |
| Guarantee Period | 12 months |
| Dimensional Specifications and Packing | |
| Dimensions (mm) | 48*81 * 83 |
| Number in carton (PCS) | 24 |
